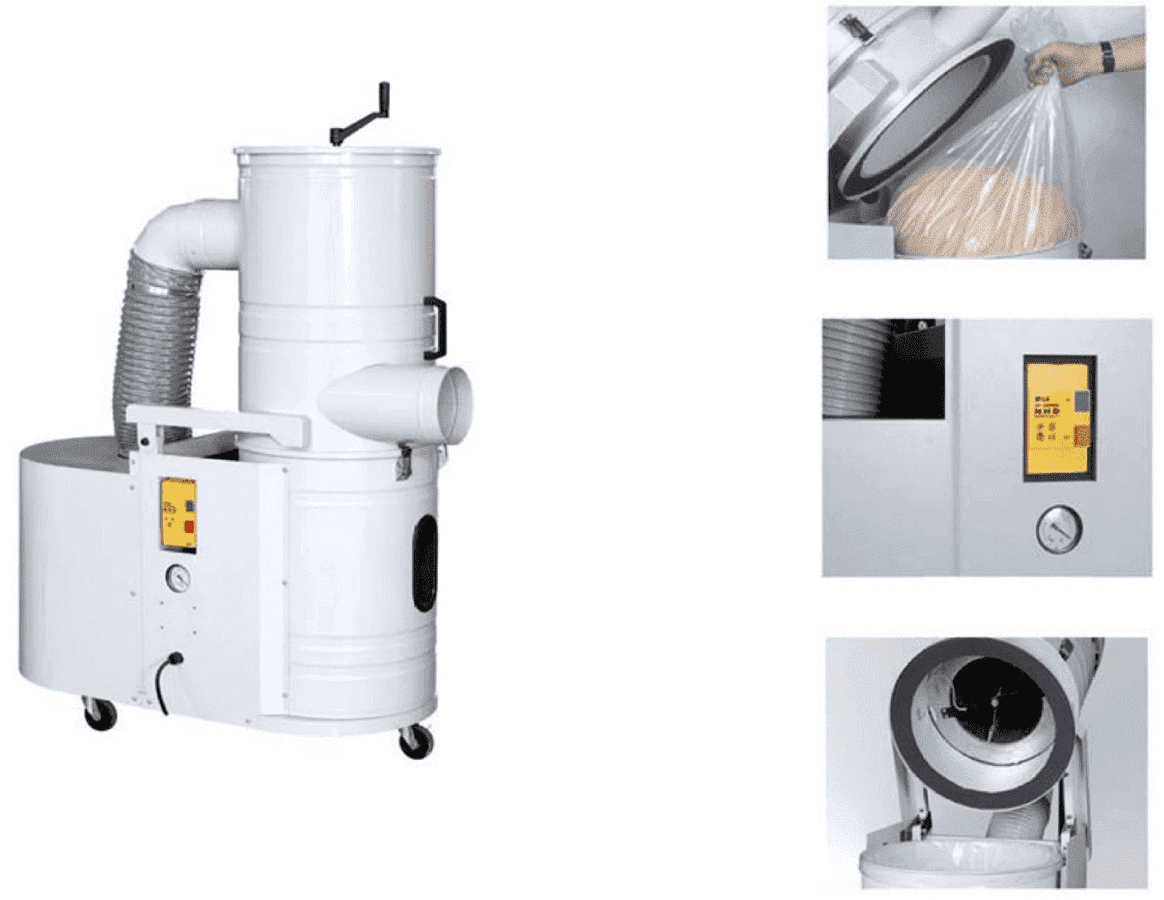

Mobile Dust Collector

Mobile Dust Collector Introduction

Mobile Dust Collectors satisfy high mobility to collect the dust anywhere for small amount of dust emissions. The type range from 1HP to 10HP. There are wide variety of models for demands. It is flexible to equip with filter bag or cartridge.

Mobile Dust Collector Specification

The Specifications for Reference Only, Please contact us for more details.

▪ UFO - 70FC

1 HP Mobile dust collector
Model UFO - 70FC (Cartridage filter)
Inlet Diameter 4"x1 PCS
Motor 1HP
Air Volume 12 m3/min
Pressure 190 mmAq
Filter media Polyester / PPT (Option)
Filter mesh size 10 / 5 micron
Filter Qty. 1PC
Filter Area 3.62m2/PC x 1PC= 3.62m2
Dust can volume 0.06 m3x1 PCS
Dimensions* 84 L x 41 W x 200 H (cm)

▪ UFO - 101DC

2 HP Mobile dust collector
Model UFO - 101DC (Cartridage filter)
Inlet Diameter 5" (Optional Item:4" x2 PCS)
Motor 2HP
Air Volume 23 m3/min
Pressure 200 mmAq
Filter media Polyester / PPT (Option)
Filter mesh size 10 / 5 micron
Filter Qty. 1PC
Filter Area 4.5m2/PC x 1PC= 4.5m2
Dust can volume 0.06 m3x1 PCS
Dimensions* 107 L x 56 W x 201 H (cm)

▪ UFO - 102BC

3 HP Mobile dust collector
Model UFO - 102BC (Cartridage filter)
Inlet Diameter 6" (Optional Item:4" x3 PCS)
Motor 3HP
Air Volume 35 m3/min
Filter media Polyester / PPT (Option)
Filter mesh size 10 / 5 micron
Filter Qty. 2PC
Filter Area 4.5m2/PC x 2PC= 9.0m2
Dust can volume 0.06 m3x2 PCS
Dimensions* 145 L x 56 W x 193 H (cm)

▪ UFO - 105DC

7.5 HP Mobile dust collector
Model UFO - 105DC (Cartridage filter)
Inlet Diameter 8" (Optional Item:4" x5 PCS)
Motor 7.5HP
Air Volume 70 m3/min.
Pressure 250 mmAq
Filter media Polyester / PPT (Option)
Filter mesh size 10 / 5 micron
Filter Qty. 4PCS
Filter Area 4.5m2/PC x 4PC= 18m2
Dust can volume 0.06 m3x4 PCS
Dimensions* 148 L x 127 W x 260 H (cm)

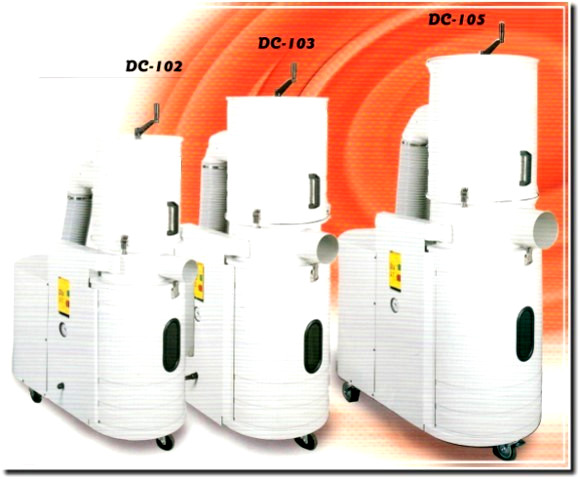

DC Model - Mobile Dustcollectors (Cartridage filter)

Mobile Dustcollectors
Note: ** : For Information Only
** Note: All data are for reference only. FengGuh has authority to modify or redesign product specifications. Please contact us for more details
📧 ︿
